Specification Parameters
|
Parameter |
Details |
|
Material Grade |
HT250 Gray Cast Iron / 45# Carbon Steel |
|
Inner Diameter |
120–280 mm (customizable) |
|
Outer Diameter |
220–450 mm (customizable) |
|
Thickness |
30–80 mm (customizable) |
|

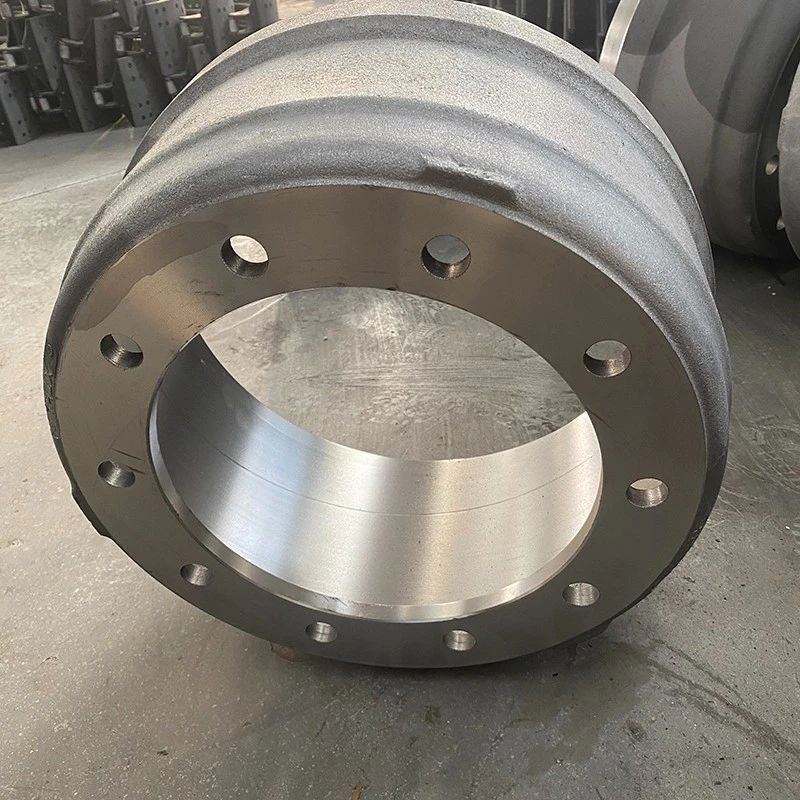

Mounting Hole Quantity |
6 / 8 / 10 Holes |
|
Surface Treatment |
Anti-rust Painting / Hot Dip Galvanizing |
|
Applicable Axle Load |
3–20 Tons |
|
Certification |
ISO 9001, SGS |
Material & Craftsmanship

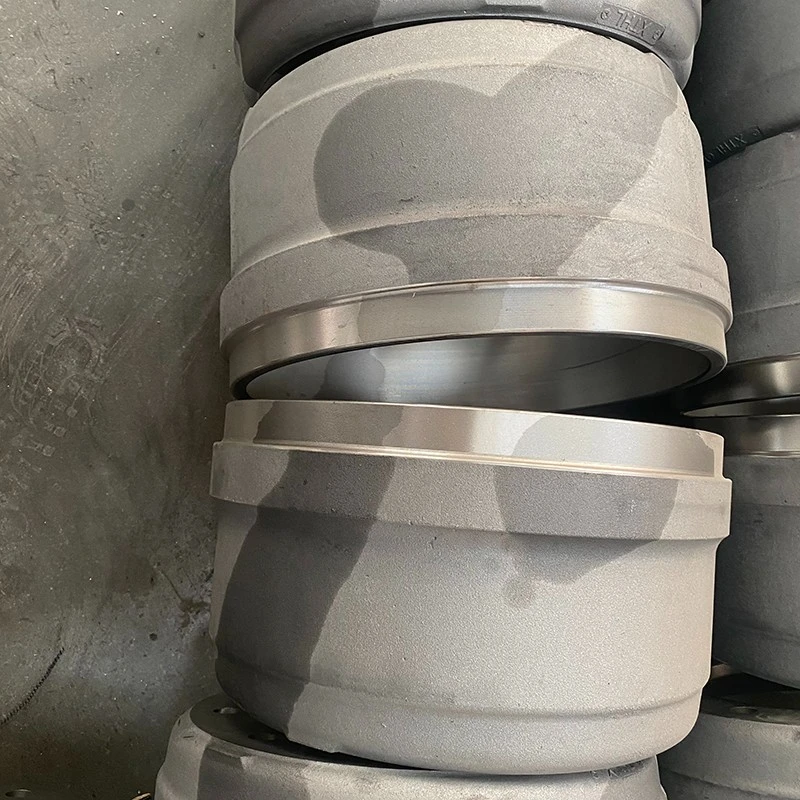

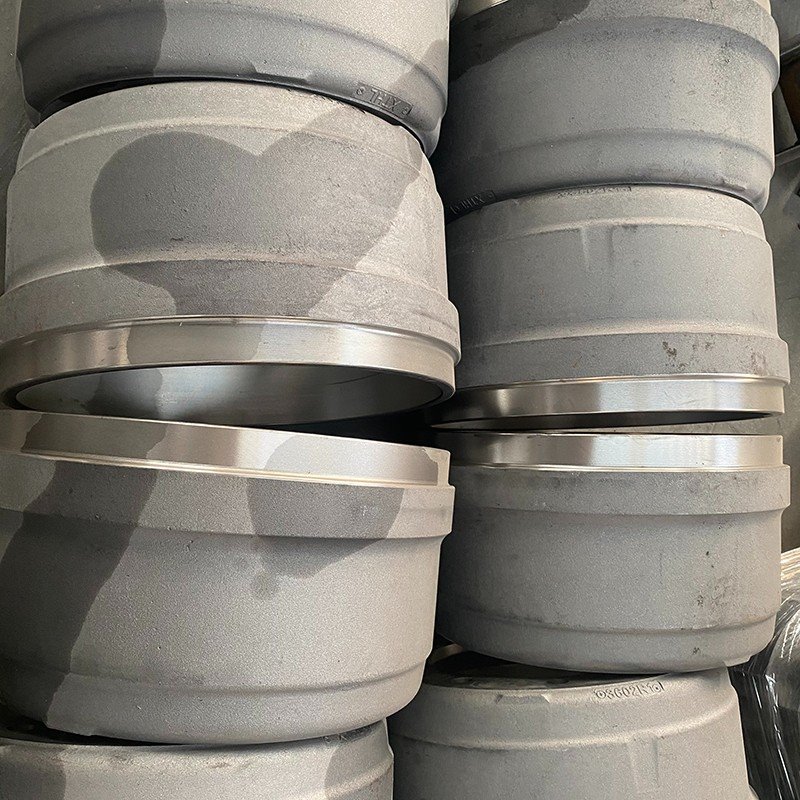

Our trailer axle brake hubs are manufactured using two premium material options to meet diverse application needs:
1.HT250 Gray Cast Iron: This material offers excellent thermal conductivity and wear resistance, making it ideal for frequent braking scenarios. Its tight graphite structure reduces heat accumulation, preventing brake fade and ensuring consistent performance during long journeys.
2.45# Carbon Steel: Selected for heavy-load applications, this high-strength steel undergoes quenching and tempering treatment to enhance hardness and toughness. It resists impact damage and deformation even when carrying maximum load capacity.
All raw materials are subjected to strict quality inspections, including hardness testing and metallographic analysis, to ensure compliance with industry standards before production.
Production Process
1.Raw Material Cutting: Raw cast iron or steel blocks are precisely cut into blank sizes using CNC cutting machines, minimizing material waste.
2.Rough Machining: The blanks are shaped via lathe processing to form the basic structure of the brake hub, including inner/outer diameters and mounting surfaces.
3.Precision Machining: CNC milling machines are used to drill mounting holes and process key fit surfaces, ensuring dimensional accuracy within ±0.05 mm.
4.Heat Treatment: Blanks are quenched and tempered to optimize hardness and toughness; cast iron hubs undergo annealing to eliminate internal stress.
5.Surface Treatment: Hubs are coated with anti-rust paint or hot-dip galvanized to resist corrosion in harsh environments such as rain, snow, and road salt.
6.Quality Inspection: Each hub is tested for dimensional accuracy, surface finish, and dynamic balance; random samples undergo load-bearing and high-temperature durability tests.
7.Packaging & Storage: Qualified products are packaged in moisture-proof cartons with anti-collision foam, ready for shipment.
Services
Customization Service:
We offer tailor-made solutions for brake hub dimensions, materials, and surface treatments to match your specific trailer axle models.
Technical Support:
Our professional engineering team provides free installation guidance, compatibility analysis, and after-sales technical consultation.
FAQ
Q: What is the minimum order quantity (MOQ) for custom brake hubs?
A: The MOQ for custom products is 500 units. For standard models, we accept small trial orders starting from 100 units.
Q: How to confirm if the brake hub is compatible with my trailer axle?
A: Please provide your axle's load capacity, mounting hole pattern, and inner diameter requirements. Our team will verify compatibility and recommend the most suitable model.
Q: What is the lead time for bulk orders?
A: For bulk orders (over 5,000 units), the lead time is 20–30 days, depending on customization requirements.
Q: Do you provide sample service?
A: Yes, we offer free samples (shipping costs borne by the customer).
